Application
System | |
---|---|
Processor |
Intel® 9th Generation Core i5-9500TE 6 Cores 3.6GHz Intel® 9th Generation Core i7-9700TE 8 Cores 3.8GHz |
System Memory |
Dual Channel DDR4 2666 SODIMM up to 64GB |
Storage Disk Drive |
M.2 2242 SATA SSD x 1 / 2.5" SATA Hard Disk Drive/SSD x 1 (optional) |
OS Support |
Microsoft® Windows 10 Microsoft® Windows® 11 Linux® |
Security |
RFID Reader (optional) Trusted Platform Module 2.0(TPM 2.0) |
Speaker |
2W x2 |
Wireless Communication |
802.11 ac, 802.11 ax (optional) / Bluetooth 5 (optional) |
Expansion |
PCI Express[x4]/[x1] x1 (optional) |
Chipset |
N/A |
Graphics |
N/A |
Function Key |
LCD Brightness Up/Down Reading Light On/Off Touch Screen On/Off |
Camera |
N/A |
Power |
AC 100~240V / DC 12V/24V |
Display | |
---|---|
Size |

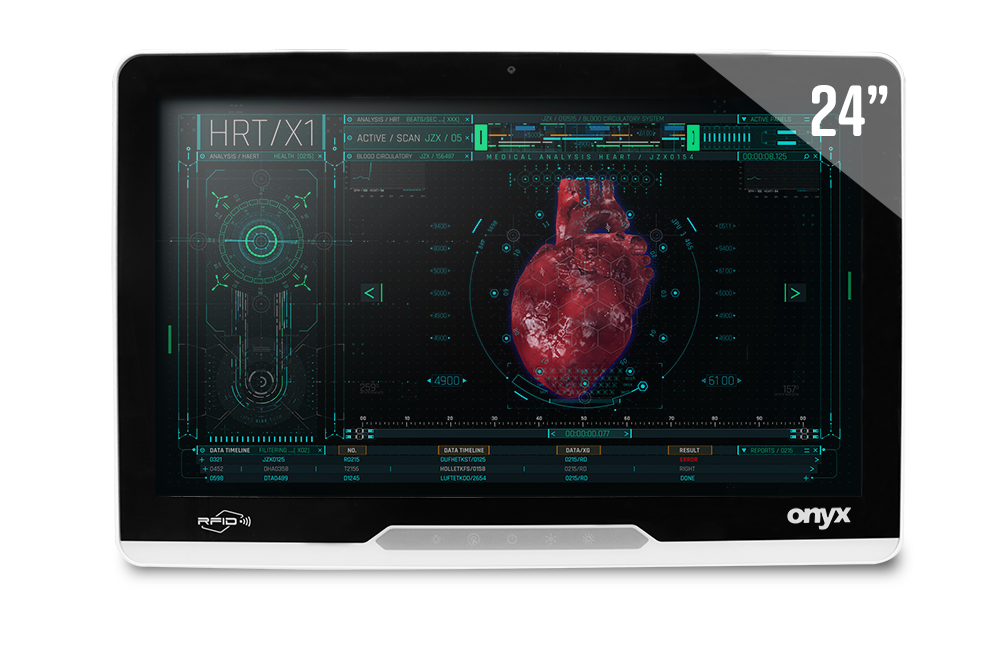

24" |
Resolution |
1920 x 1080 |
Luminance |
250nits |
Touch Screen |
Capacitive Multi-Touch |
Contrast Ratio |
3000:1 |
View Angle |
178˚(H)/178˚(V) |
Back Light Life Time |
30,000 Hours |

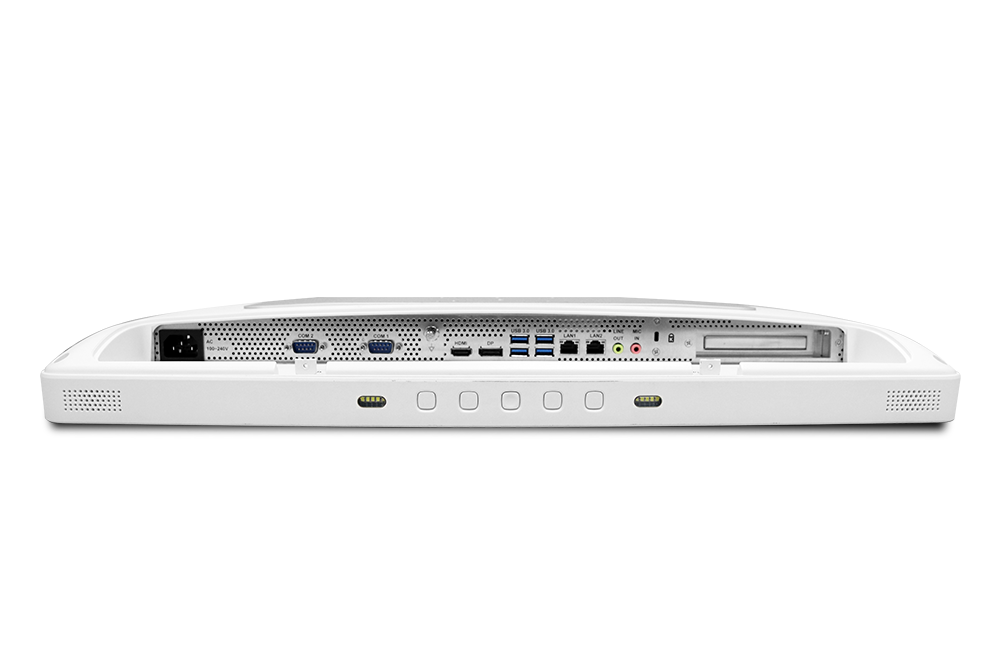

I/O | |
---|---|
USB |
USB 3.2 Gen 2 x 4 Isolated USB 2.0 Full Speed x4 (optional) |
Ethernet |
1.5kv isolated Gigabit LAN x2 |
Audio |
Line-out x 1 Mic-in x 1 |
Serial Port |
RS-232 x 2 or x1 ( When backup battery is installed) |
COM |
N/A |
Video Out |
Display Port 1.2 x1, HDMI 1.4b x 1 (Supports resolution up to 3840 x 2160) |
Video In |
N/A |
Mechanical and Environmental | |
---|---|
Operating Temperature |
0°C ~ 35°C(32°F ~ 95°F) |
Storage Temperature |
-20°C ~ 60°C(-4°F ~ 140°F) |
Dimension |
586 x 381 x 67mm |
Package Size |
755 x 195 x 528mm |
Gross Weight |
14 kg (30.86 lb) |
Net Weight |
8.7 kg(19.2 lb) |

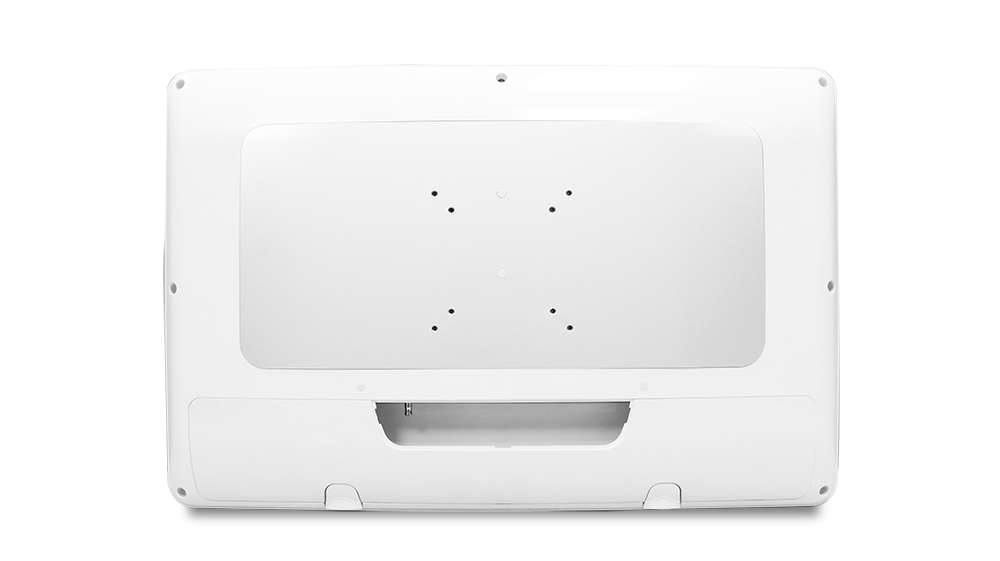

Mounting VESA |
75/100 mm VESA mount |
Degree of Protection |
IP65 in the front ; IP54 in the back |
Certifications |
CE: EN 60601-1-2:2015(V4.0) CE:EN 60601-1:2006/A1:2013(V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) |
