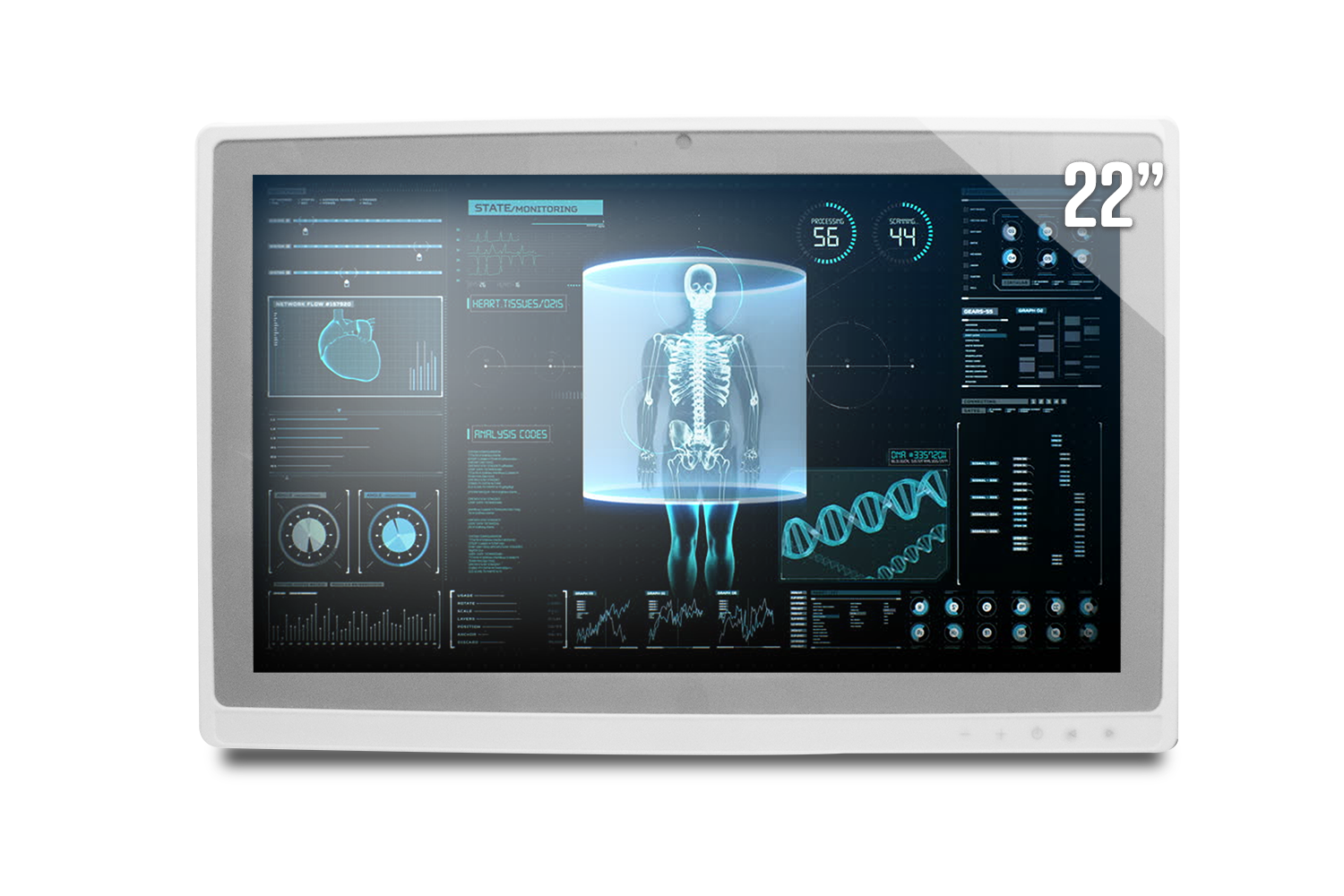

MEDDP-722
22" Slim Medical Display
$3000 US and up
This price is for reference only, the final price will depend on the specifications you choose.
Feature
- 22" LED Panel
- 1920 x 1080
- HDMI, DVI and VGA input
Specification
| System | |
|---|---|
| OS Support |
Microsoft® Windows 7 Microsoft® Windows 10 |
| Speaker |
5W x 2 |
| Camera |
2MP |
| Power |
DC 12V |
| Display | |
|---|---|
| Size |
21.5" |
| Resolution |
1920 x 1080 |
| Luminance |
250nits |
| Touch Screen |
PCT (optional) |
| Contrast Ratio |
3000:1 |
| View Angle |
178˚(H)/178˚(V) |
| Max. Colors |
16.7M |
| Back Light Life Time |
N/A |

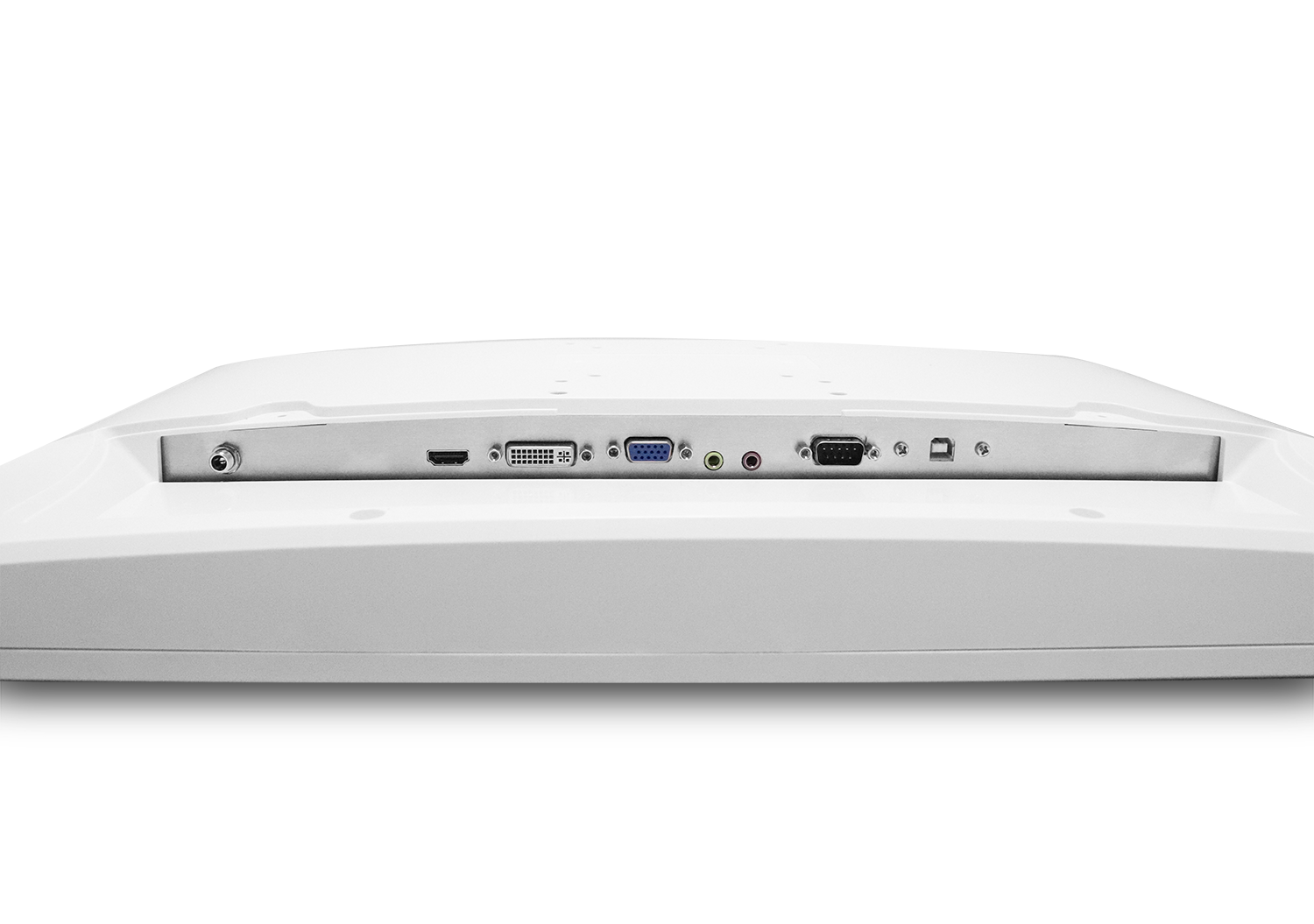

| I/O | |
|---|---|
| USB |
USB x 1 for touch controller |
| Ethernet |
N/A |
| Audio |
Audio-in x 1 |
| Serial Port |
N/A |
| COM |
N/A |
| Video Out |
N/A |
| Video In |
DVI x1 HDMI x1 VGA x1 |
| Mechanical and Environmental | |
|---|---|
| Operating Temperature |
5°C ~ 40°C(41°F ~ 104°F) |
| Storage Temperature |
-10°C ~ 60°C(14°F ~ 140°F) |
| Dimension |
546 x 351 x 56 mm |
| Package Size |
570 x 478 x 260 mm |
| Gross Weight |
8.4kg (18.51lb) |
| Net Weight |
5.7kg (12.56lb) |

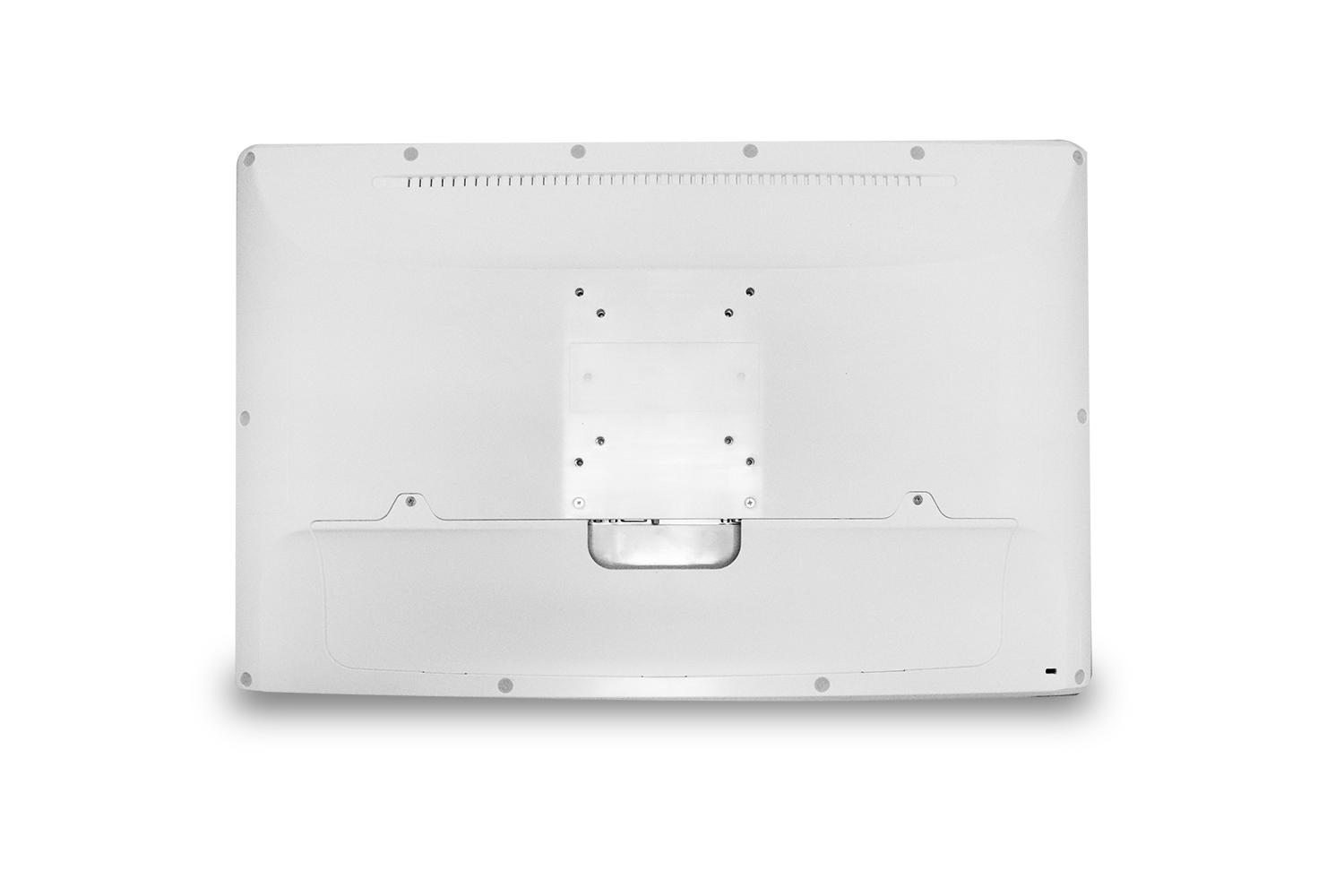

| Mounting VESA |
75/100 mm VESA mount |
| Degree of Protection |
Front Panel: IP65 ; Rear: IPX1 |
| Certifications |
CE: EN 60601-1-2:2015(V4.0) EN 60601-1:2006/ A1:2013(V3.1) FCC: Part 18 Class B |
