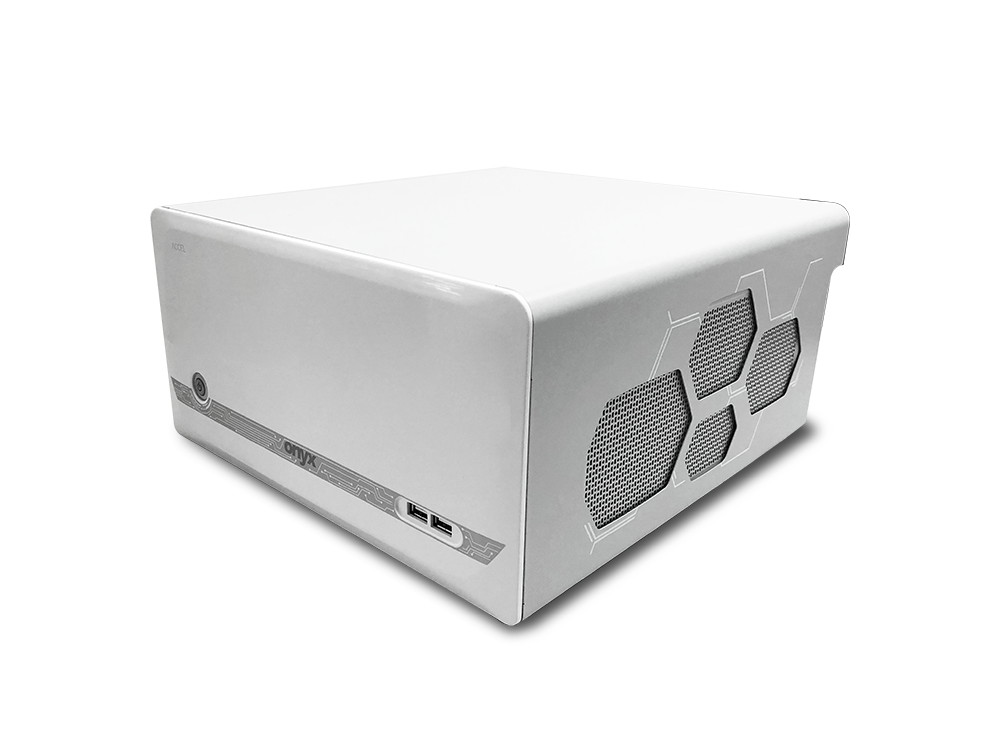

ACCEL-VM500
Medical Video Management System with 9th Generation Intel Xeon / Core i7 CPU
$3000 US and up
Price for reference only. Excludes import duties, tariffs, and any taxes. Final price based on official quotation.
Feature
- 4K UHD Medical Recorder
- 4K HDMI 2.0 input
- Full HD Multi-Video interface input
Specification
| System | |
|---|---|
| Processor |
Intel® 9th generation Core I Processor |
| System Memory |
ECC/Non-ECC DDR4 2133 DIMM x 4 up to 64GB |
| Storage Disk Drive |
M.2 2280 M Key SSD x 1 (NVMe or SATA SSD) |
| OS Support |
Microsoft® Windows 10 Microsoft® Windows® 11 Linux® |
| Security |
Trusted Platform Module 2.0(TPM 2.0) |
| Expansion |
M.2 E Key 2230 x 1 for Wireless module PCIe 3.0[x16] x1, PCIe 3.0 [x4] x2, PCIe 3.0 [x1] x 1 |
| Chipset |
Intel® C246A |
| Graphics |
N/A |
| Function Key |
N/A |
| Camera |
N/A |
| Power |
100V to 240V AC Input, 500W |
| Display | |
|---|---|
| View Angle |
N/A |
| Max. Colors |
N/A |
| Back Light Life Time |
N/A |

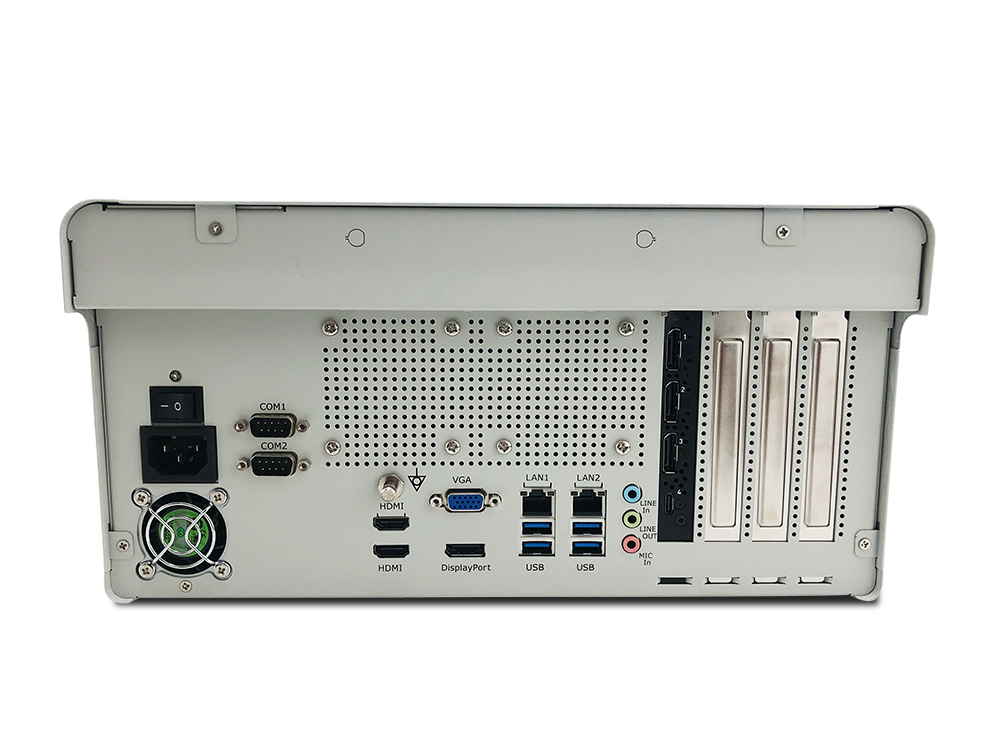

| I/O | |
|---|---|
| USB |
USB 3.1 Gen 1 x 4 |
| Ethernet |
Gigabit LAN x2 |
| Audio |
Line-in x 1 Line-out x 1 Mic-in x 1 |
| Serial Port |
RS-232 x 2 |
| COM |
N/A |
| Video Out |
N/A |
| Video In |
N/A |
| Mechanical and Environmental | |
|---|---|
| Operating Temperature |
0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature |
-20°C ~ 60°C(-4°F ~ 140°F) |
| Dimension |
330 x357.4 x168 mm |
| Package Size |
500 x 490 x 300 mm |
| Gross Weight |
8.6 kg |
| Net Weight |
8 kg |
| Mounting VESA |
N/A |
| Degree of Protection |
N/A |
| Certifications |
N/A |
