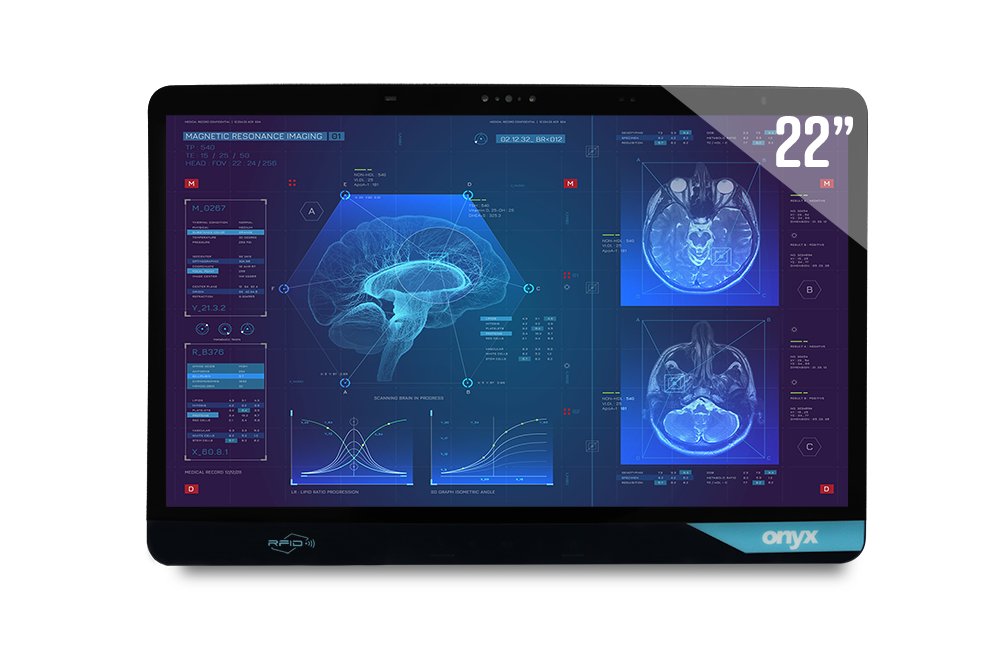

Venus-224
22" Dual Hot Swappable Battery Medical Cart Computer
$3466 US and up
Price for reference only. Excludes import duties, tariffs, and any taxes. Final price based on official quotation.
Feature
- Intel® 10nm 11 gene.
- Tiger Lake i7/i5/i3/Celeron
- Dual hot swappable battery design
- DDR4 up to 64GB
Details
Application
- Smart Ward
- Telemedicine
- Intelligent Nurse Station
- Medical Laboratory
- Outpatient Clinic
Specification
| System | |
|---|---|
| Processor |
Intel® 11th generation Core i7 1165G7 / i5 1135G7 |
| System Memory |
DDR4 up to 64GB |
| Storage Disk Drive |
m.2 SSD up to 1TB |
| OS Support |
Microsoft® Windows 10 Microsoft® Windows® 11 Ubuntu IGEL |
| Security |
Barcode reader (optional) Imprivata RFID reader (optional) Smart Card Reader (optional) |
| Speaker |
3W x2 |
| Wireless Communication |
802.11 ac/a/b/g/n + BT 4.1 (optional) Wifi6 + BT 5.2 (optional) |
| Graphics |
N/A |
| Function Key |
N/A |
| Camera |
N/A |
| Power |
19V DC-in x1 |
| Display | |
|---|---|
| Size |
21.5" |
| Resolution |
1920 x 1080 |
| Luminance |
250nits |
| Touch Screen |
PCT (optional) |
| Contrast Ratio |
1000':1 |
| View Angle |
N/A |
| Max. Colors |
16.7M |
| Back Light Life Time |
N/A |
| I/O | |
|---|---|
| USB |
USB 2.0 x2 USB 3.0 Type A x2 |
| Ethernet |
1.5kv isolated Gigabit LAN x2 |
| Audio |
Combo audio port x1 |
| Serial Port |
N/A |
| COM |
COM port x2 |
| Video Out |
HDMI 1.4 x1 |
| Video In |
N/A |
| Mechanical and Environmental | |
|---|---|
| Operating Temperature |
0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature |
-20°C ~ 60°C(-4°F ~ 140°F) |
| Dimension |
510(L) x 78.4(W) x 346(H) |
| Package Size |
645(L) x 210(W) x 513(H)mm |
| Gross Weight |
10kg(26.5lbs) |
| Net Weight |
6kg |
| Mounting VESA |
75/100 mm VESA mount |
| Degree of Protection |
Front Panel: IP65 ; Rear: IPX1 |
| Certifications |
CE: EN 60601-1-2:2015(V4.0) CE:EN 60601-1:2006/A1:2013(V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) |
