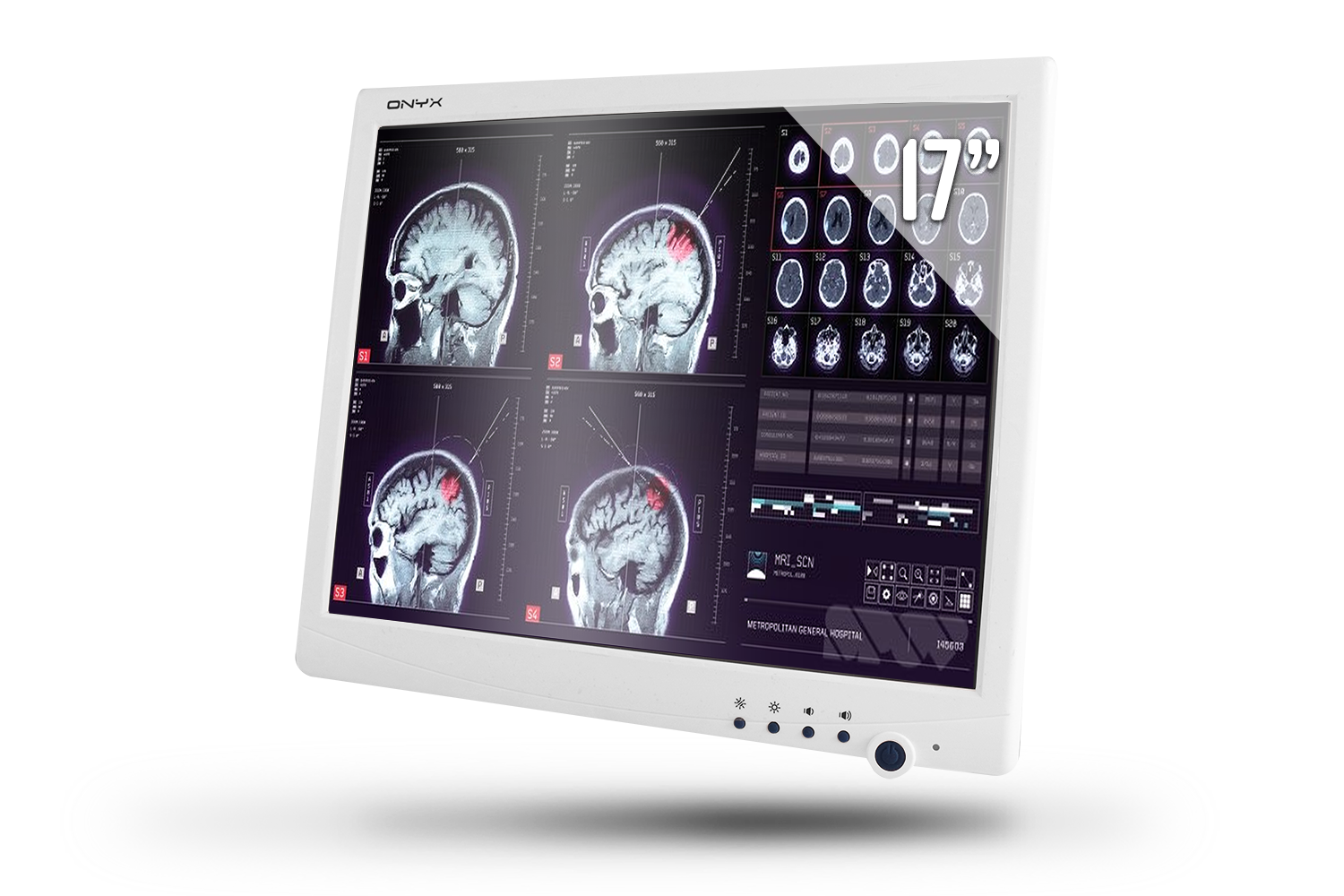

SMA-1733
17” Fanless Slim Medical All in One PC
$3000 US and up
Price for reference only. Excludes import duties, tariffs, and any taxes. Final price based on official quotation.
Feature
- 17” 1280x1024
- Intel® Celeron N6210 / Atom x6211E
- +12V to +24V Wide Range DC Input
Details
Application
- Smart Ward
- Emergency Care
- Medical Laboratory
- Radiology Unit
Specification
| System | |
|---|---|
| Processor |
Intel® Celeron N6210 2.6GHz / Atom x6211E 3.0GHz Dual Core Processor |
| System Memory |
Supports DDR4 3200 SODIMM up to 16GB ( In-Band ECC with Atom x6211E) |
| Storage Disk Drive |
M.2 2242 SATA SSD x1 |
| OS Support |
Microsoft® Windows 7 Microsoft® Windows 10 |
| Security |
RFID Reader (optional) Smart Card Reader (optional) Trusted Platform Module 2.0(TPM 2.0) |
| Speaker |
3W x2 |
| Wireless Communication |
802.11ac, Bluetooth 5.1 (optional) |
| Expansion |
M.2 2230(E-key) x 1, Proprietary PCIe[x1] x 1 |
| Chipset |
N/A |
| Graphics |
N/A |
| Function Key |
LCD Brightness Up/Down Speaker Volume Up/Down |
| Camera |
N/A |
| Power |
DC 12V |
| Display | |
|---|---|
| Size |
17" |
| Resolution |
1280 x 800 |
| Luminance |
350 nits |
| Touch Screen |
5-wire Resistive |
| Contrast Ratio |
1000':1 |
| View Angle |
170˚(H)/160˚(V) |
| Max. Colors |
N/A |
| Back Light Life Time |
> 30,000 hours |
| I/O | |
|---|---|
| USB |
USB 3.1 Gen 1 x 4 |
| Ethernet |
Gigabit LAN x2 (isolated x1 + non-isolated x1) |
| Audio |
N/A |
| Serial Port |
RS-232 x 1 |
| COM |
N/A |
| Video Out |
HDMI 2.0b x 1 |
| Video In |
N/A |
| Mechanical and Environmental | |
|---|---|
| Operating Temperature |
0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature |
-20°C ~ 60°C(-4°F ~ 140°F) |
| Dimension |
384 x 338 x 69 mm |
| Package Size |
630 x 250 x 640 mm |
| Gross Weight |
9kg (19.84 lbs) |
| Net Weight |
5.6kg (12.32lb) |
| Mounting VESA |
75/100 mm VESA mount |
| Degree of Protection |
IP65 in the front, IPX1 |
| Certifications |
CE: EN 60601-1-2:2015(V4.0) CE:EN 60601-1:2006/A1:2013(V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) |
