SMA-1533

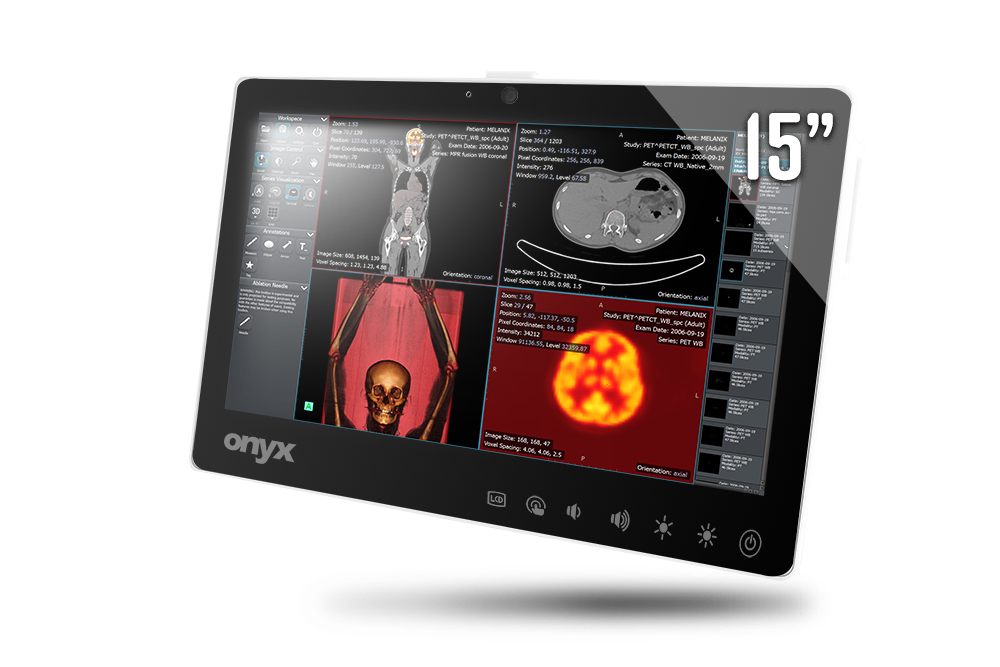

15.6” Fanless Slim Medical All in One PC
$3000 US and up
Price for reference only. Excludes import duties, tariffs, and any taxes. Final price based on official quotation.
Feature
- 15.6” 1920x1080
- Intel® Celeron N6210 / Atom x6211E
- DDR4 SODIMM up to 16GB
Details
Application
- Smart Ward
- Emergency Care
- Medical Laboratory
- Radiology Unit
Specification
| System | |
|---|---|
| Processor |
Intel® Celeron N6210 2.6GHz / Atom x6211E 3.0GHz Dual Core Processor |
| System Memory |
Supports DDR4 3200 SODIMM up to 16GB ( In-Band ECC with Atom x6211E) |
| Storage Disk Drive |
M.2 2242 SATA SSD x1 |
| OS Support |
Microsoft® Windows 10 Microsoft® Windows® 11 Linux® |
| Security |
RFID Reader (optional) |
| Speaker |
3W x2 |
| Wireless Communication |
802.11ac/ax(optional) + Bluetooth 5.1/5.3(optional) |
| Expansion |
M.2 2230(E-key) x 1, Proprietary PCIe[x1] x 1 |
| Chipset |
N/A |
| Graphics |
N/A |
| Function Key |
LCD Brightness Up/Down Speaker Volume Up/Down |
| Camera |
N/A |
| Power |
DC 12V / Power over Ethernet(optional) |
| Display | |
|---|---|
| Size |
15.6" |
| Resolution |
1920 x 1080 |
| Luminance |
300 nits |
| Touch Screen |
Capacitive Multi-Touch |
| Contrast Ratio |
1000':1 |
| View Angle |
178˚(H)/178˚(V) |
| Max. Colors |
16.2 M |
| Back Light Life Time |
> 30,000 hours |
| I/O | |
|---|---|
| Ethernet |
Gigabit LAN x2 (isolated x1 + non-isolated x1) |
| Audio |
N/A |
| Serial Port |
RS-232 x 1 |
| COM |
N/A |
| Video Out |
HDMI 2.0b x 1 |
| Video In |
N/A |
| Mechanical and Environmental | |
|---|---|
| Operating Temperature |
0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature |
-20°C ~ 60°C(-4°F ~ 140°F) |
| Dimension |
398 x 265 x 47mm |
| Package Size |
721 x 224 x 464mm |
| Gross Weight |
6.5 kg (14.33lb) |
| Net Weight |
2.8 kg (6.2lb) |
| Mounting VESA |
75/100 mm VESA mount |
| Degree of Protection |
IP65 in the front, IPX1 |
| Certifications |
CE: EN 60601-1-2:2015(V4.0) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) EN 60601-1:2006/ A1:2013(V3.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) |
