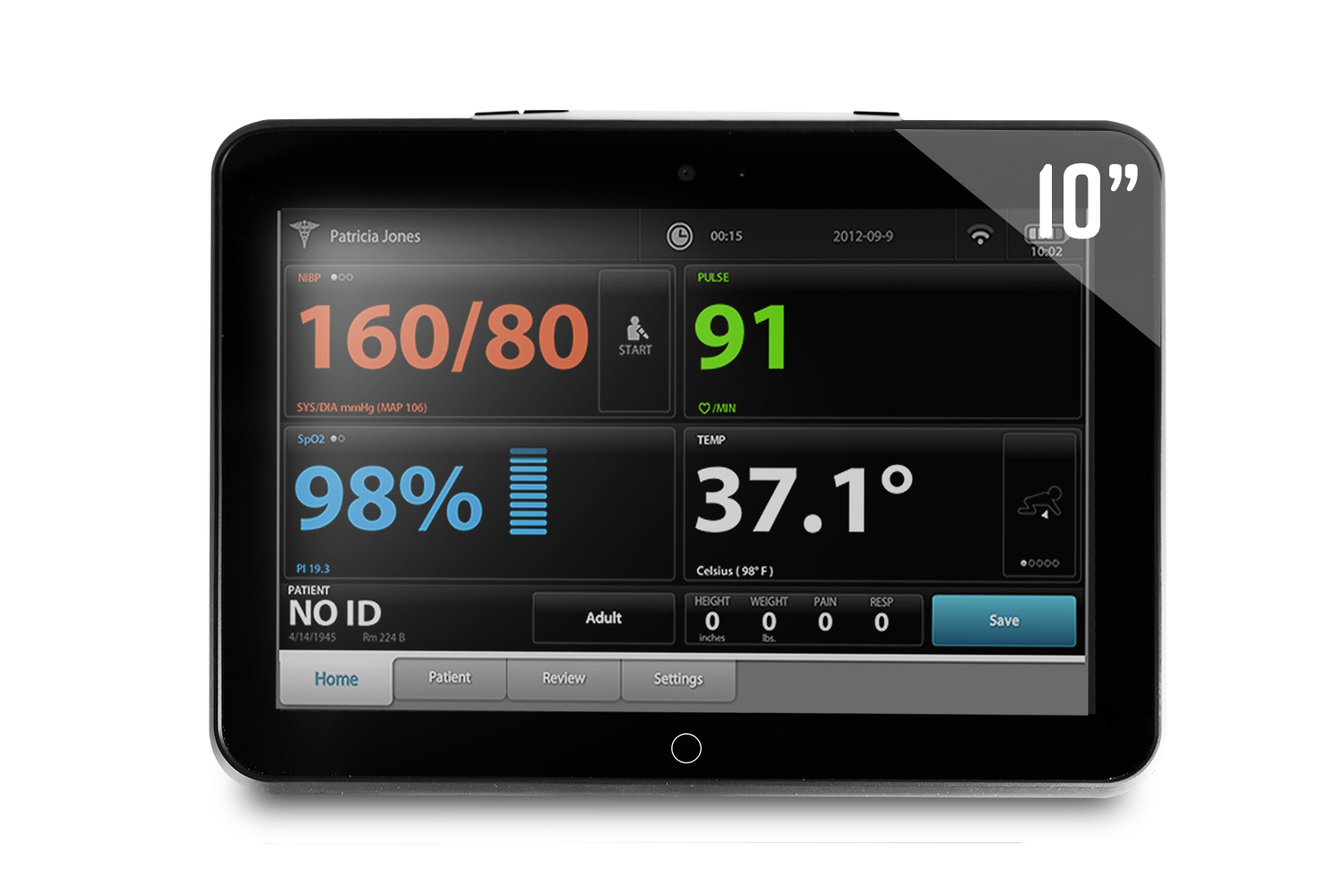

10.1” Rugged Medical Tablet
MD101
Starting at US$2495
Price for reference only. Excludes import duties, tariffs, and any taxes. Final price based on official quotation.
Feature
- 10.1" 1920 x 1200
- Intel Cherry Trail Z8350
- 3 feet drop resistant
Details
Application
- Smart Ward
- Intelligent Nurse Station
Specification
| System | |
|---|---|
| Processor |
Intel® Cherry Trail QC Processor Z8350 1.44 GHz |
| System Memory |
4GB |
| Storage Disk Drive |
eMMC 128 GB |
| OS Support |
Android 6.0 Microsoft® Windows 10 IOT LTSB |
| Speaker |
2W x2 |
| Wireless Communication |
802.11 a/b/g/n/ac +BT 5.0 |
| Expansion |
N/A |
| Chipset |
N/A |
| Graphics |
N/A |
| Function Key |
N/A |
| Camera |
2 MP (Front) / 8 MP (Rear) |
| Power |
DC 15 V |
| Display | |
|---|---|
| Size |
10.1" |
| Luminance |
380 nits |
| Touch Screen |
Projected Capacitive Touchscreen,w/Gorilla Glass |
| Contrast Ratio |
800:1 |
| View Angle |
N/A |
| Max. Colors |
16.7M |
| Back Light Life Time |
N/A |
| I/O | |
|---|---|
| USB |
USB 3.0 (Type-A) x1 |
| Ethernet |
N/A |
| Audio |
3.5 mm Combo Audio Jack x1 |
| Serial Port |
N/A |
| COM |
N/A |
| Video Out |
Micro HDMI x1 |
| Video In |
N/A |
| Mechanical and Environmental | |
|---|---|
| Operating Temperature |
0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature |
-20°C ~ 60°C(-4°F ~ 140°F) |
| Dimension |
312 (W) x 239 (H) x 37 (D) mm |
| Package Size |
310 x 220 x 110 mm |
| Gross Weight |
2 kg (4.4 lb) |
| Net Weight |
1.2kg (2.6lb) |
| Degree of Protection |
IP54 |
| Certifications |
CE: EN 300 328 (V2.1.1), EN 301 893 (V2.1.1) CE: EN 60601-1-2:2015(V4.0) CE:EN 60601-1:2006/A1:2013(V3.1) FCC: Part 18 Class B |
