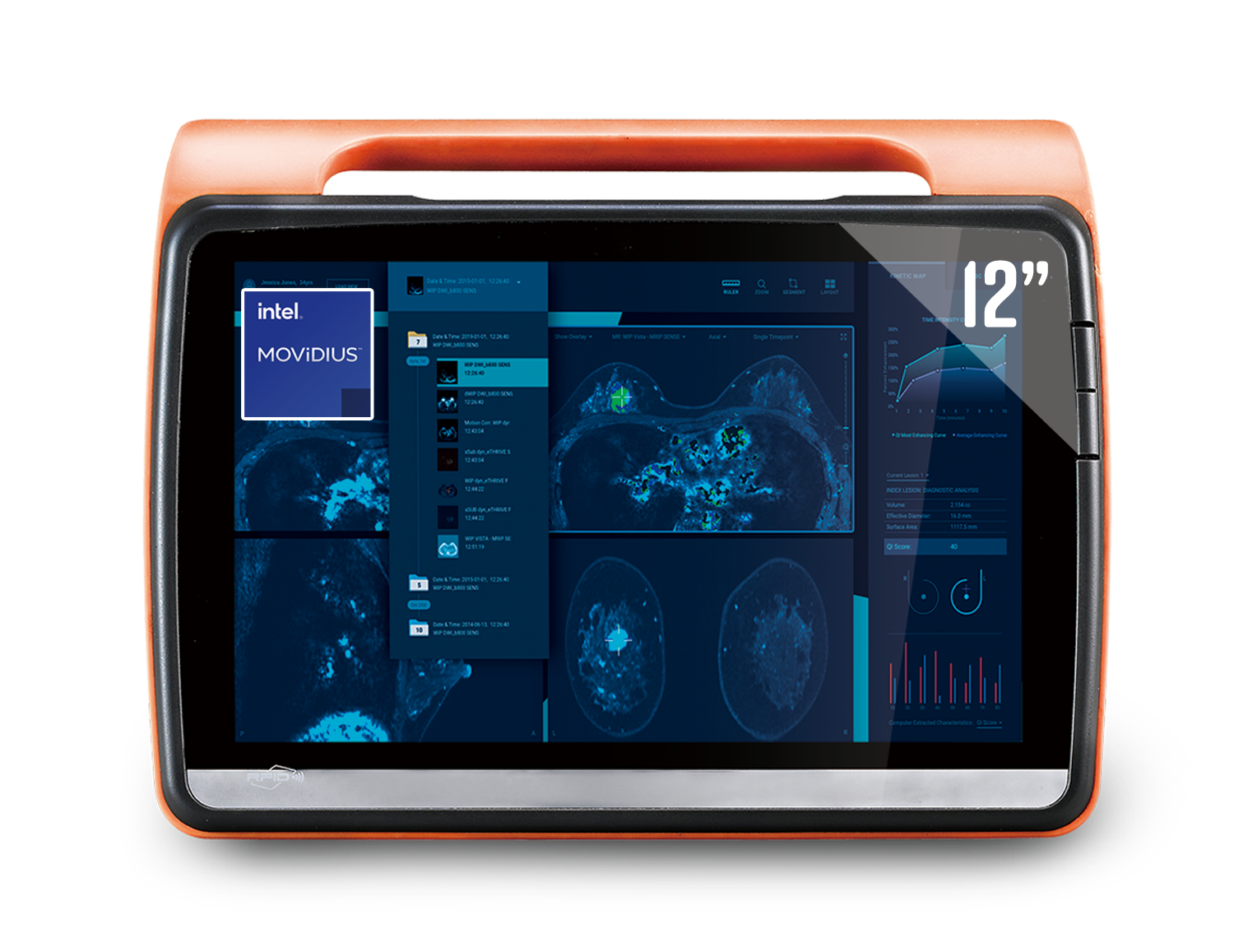

MD116I
12”Fanless Intel ATOM / i5 Medical Tablet
Starting at US$4320
This price is for reference only, the final price will depend on the specifications you choose.
Feature
- 12" 1920 x 1080
- Intel Kaby Lake Core i5 U
- Dual hot-swappable batteries
Details
Application
- Smart Ward
- Telemedicine
- Emergency Care
Specification
| System | |
|---|---|
| Processor |
Intel® Kaby Lake Core i5 U Processor |
| System Memory |
DDR4 SO-DIMM x1, Default 4GB (Up to 16 GB) |
| Storage Disk Drive |
M.2 Interface x1, Default 64 GB |
| OS Support |
Microsoft® Windows 10 IOT LTSB |
| Security |
Smart Card Reader x2 , RFID x1 (optional) |
| Speaker |
2W x1 |
| Wireless Communication |
802.11 ac/a/b/g/n BT 4.0 (optional) |
| Expansion |
N/A |
| Chipset |
N/A |
| Graphics |
N/A |
| Function Key |
x2 |
| Camera |
2 MP (Front) / 5 MP (Rear) (optional) |
| Power |
DC 12V |
| Display | |
|---|---|
| Size |
11.6" |
| Resolution |
1920 x 1080 |
| Luminance |
600 nits |
| Touch Screen |
Projected Capacitive Touchscreen,w/Gorilla Glass |
| Contrast Ratio |
800:1 |
| View Angle |
N/A |
| Max. Colors |
16.7M |
| Back Light Life Time |
N/A |
| I/O | |
|---|---|
| USB |
USB 2.0 (Type-A) x1 USB 3.0 (Type-A) x1 |
| Ethernet |
Gigabit LAN x 1 |
| Audio |
Internal Mic x1 |
| Serial Port |
Docking Connector x1 |
| COM |
N/A |
| Video Out |
N/A |
| Video In |
N/A |
| Mechanical and Environmental | |
|---|---|
| Operating Temperature |
0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature |
-20°C ~ 60°C(-4°F ~ 140°F) |
| Dimension |
312 (W) x 239 (H) x 37 (D) mm |
| Package Size |
400 x 345 x160 mm |
| Gross Weight |
3 kg (6.6 lb) |
| Net Weight |
Approx. 1.45~1.8 kg (3.2 lb~3.97 lb) |
| Mounting VESA |
VESA 75 via docking station |
| Degree of Protection |
IP54 |
| Certifications |
CE: EN 300 328 (V2.1.1), EN 301 893 (V2.1.1) CE: EN 60601-1-2:2015(V4.0) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) EN 60601-1:2006/ A1:2013(V3.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) |
